MPPT 80A

Sunchonglic 12V 24V 36V 48V 60V 72V 84V 96V 80A MPPT solar charge controller

MPPT 80A

MPPT Solar Charge Controller

Features:

Designed for off-grid solar system battery charging and discharging.

Regulatory mechanism of temperature compensation.

Built-in Lithium battery activation function.

Built-in solar data communication monitoring interface(RS485).

Applicable for lead acid battery(AGM/GEL/SLA) , Lithium iron phosphate battery and Ternary polymer lithium battery as well as customized battery.

Built-in advanced Maximum Power Point Tracking algorithm.

Charging current can be manually regulated.

Multiple charging and discharging protections.

Designed for 12V/24V/36V/48V/60V/72V/84V/96V DC.

Max PV array open circuit voltage 230V DC.

Support Max 96V lead acid battery.

Support Max 45 cells LiFePO4.

INQUIRE NOW

SEND ENQUIRY

  X
Submit

Specifications

Model
30A/40A
50A/60A
100A/200A
Charging Mode
MPPT automatic maximum power tracking
Charging Method
MPPT tracks maximum power,fast charge,balanced charge,and float charge




Battery type
Lead Acid
(12V/24V/36V/48V/96V Auto+Adjustable
12V/24V/36V/48V/60V/72V/84V/96V)
Gel
12V/24V/36V/48V/60V/72V/84V/96V
LifePo 4
Single voltage 3.2* numbers of strings
(2 strings-45 strings adjustable)
Li-ion
Single voltage 3.7* numbers of strings
(2 strings-45 strings adjustable)
USER
Adjustable limit voltage for equal charge, float charge and DC discharge:8V-170V
With lithium battery activation function
With photovoltaic input,there is charging voltage(activate lithium battery),can be used without battery DC output
PV maximum open circuit input voltage

0-230V
The charging current is adjustable
0-30A
0-40A
0-50A
0-60A
0-100A
0-120A
Start charging
PV voltage is greater than + 3V of battery voltage(low current charging on rainy days)

Direct charging current output function

DC continuous output 25A

DC continuous output 60A

DC continuous output 100A

Temperature compensation
According to the temperature of the battery,the charging voltage and current are automatically compensated to prolong the battery life



Display communication
LCD display with touch button:(generating capacity/photovoltaic voltage/battery voltage/charging current/power/operation status)
Chinese and English display
Setting:(battery type,charging current,return to factory)
8-pin RS485 communication interface(operation status and setting can be queried)
Working environment temperature
-20℃-40℃
Protection level
IP21
Altitude
0-3000m
Product size
202x215x100mm
218x265x100mm
/

Video Presentation

Designed for off-grid solar system battery charging and discharging.

Regulatory mechanism of temperature compensation.

Built-in Lithium battery activation function.

Built-in solar data communication monitoring interface(RS485).

Applicable for lead acid battery(AGM/GEL/SLA) , Lithium iron phosphate battery and Ternary polymer lithium battery as well as customized battery.

Built-in advanced Maximum Power Point Tracking algorithm.

Charging current can be manually regulated.

Multiple charging and discharging protections.

Designed for 12V/24V/36V/48V/60V/72V/84V/96V DC.

Max PV array open circuit voltage 230V DC.

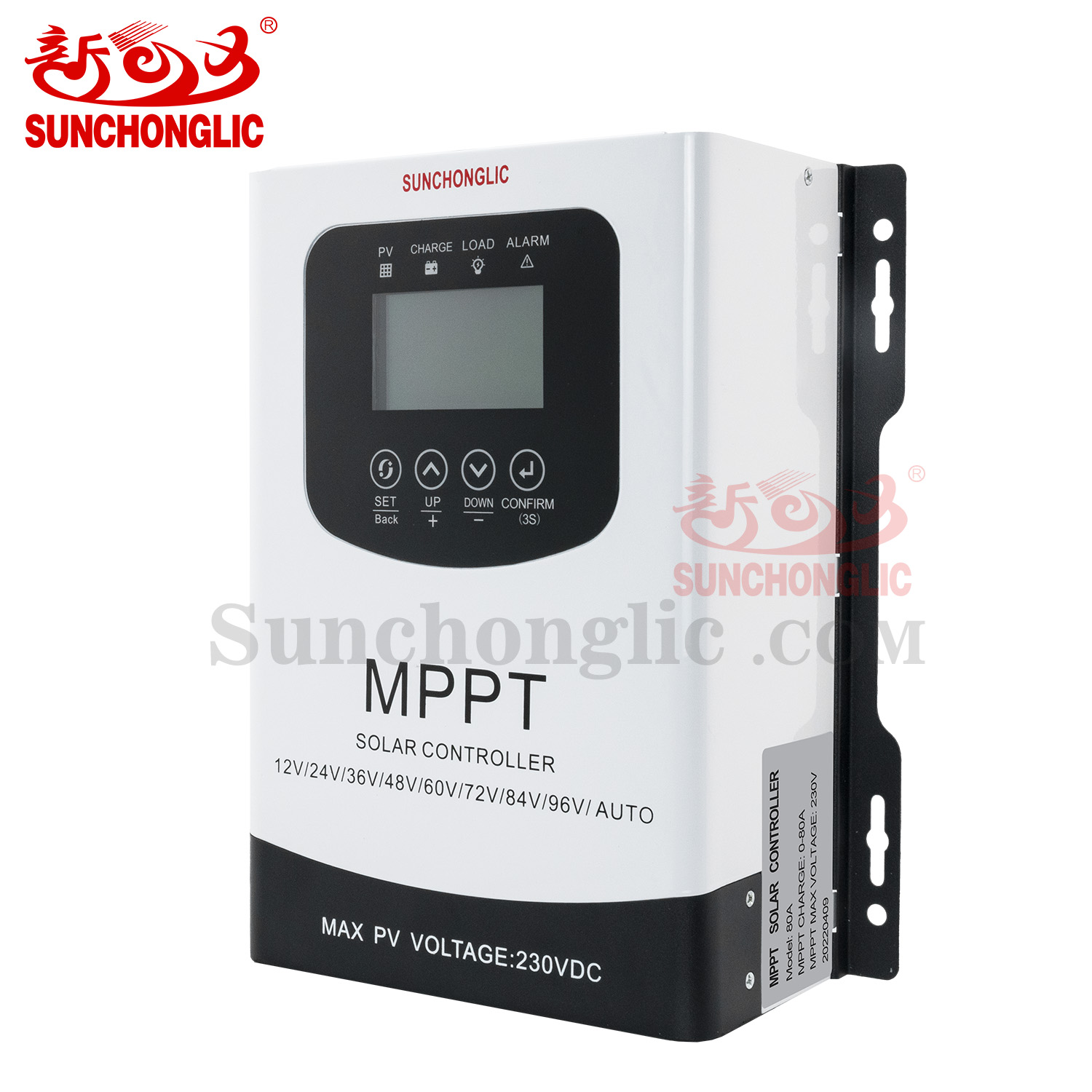

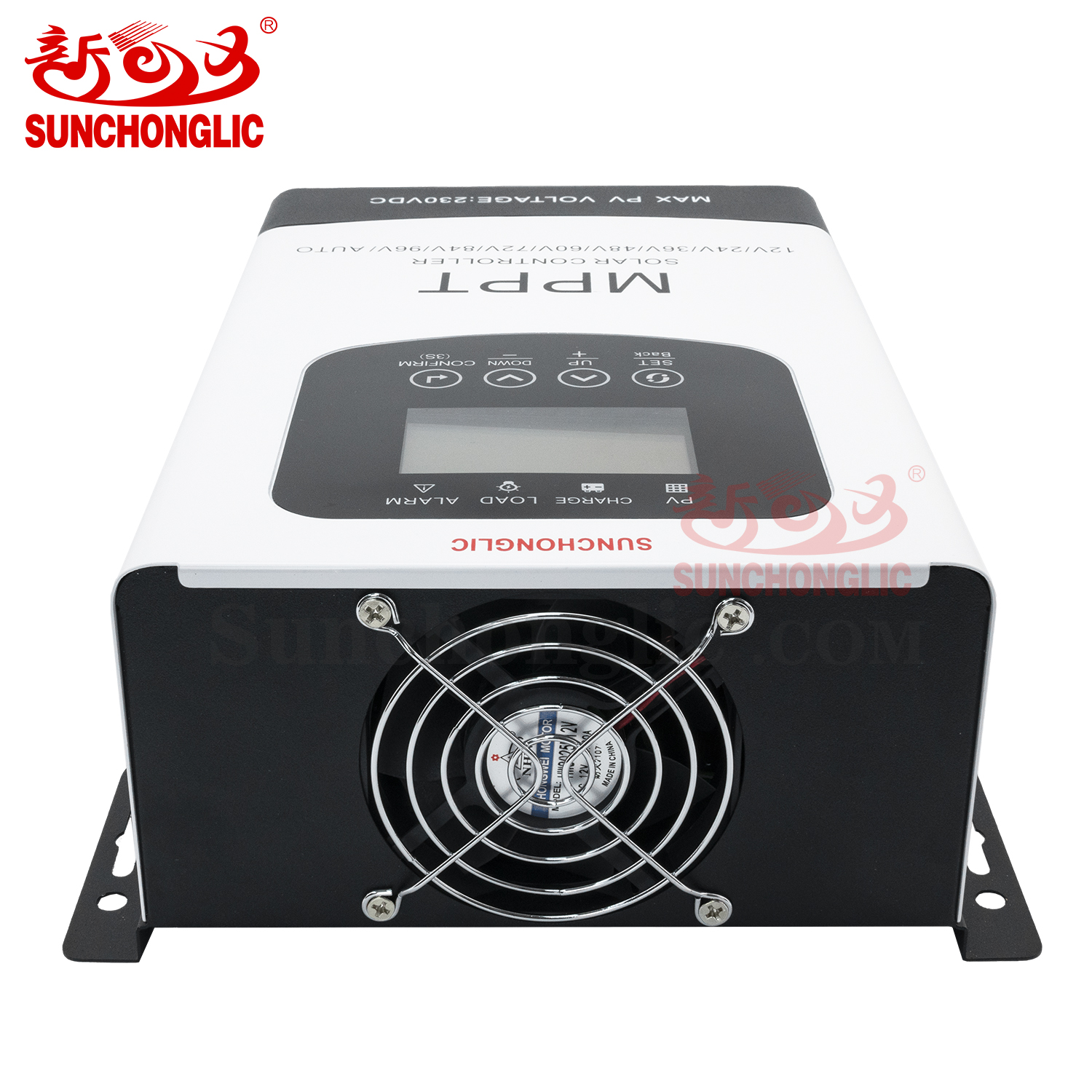

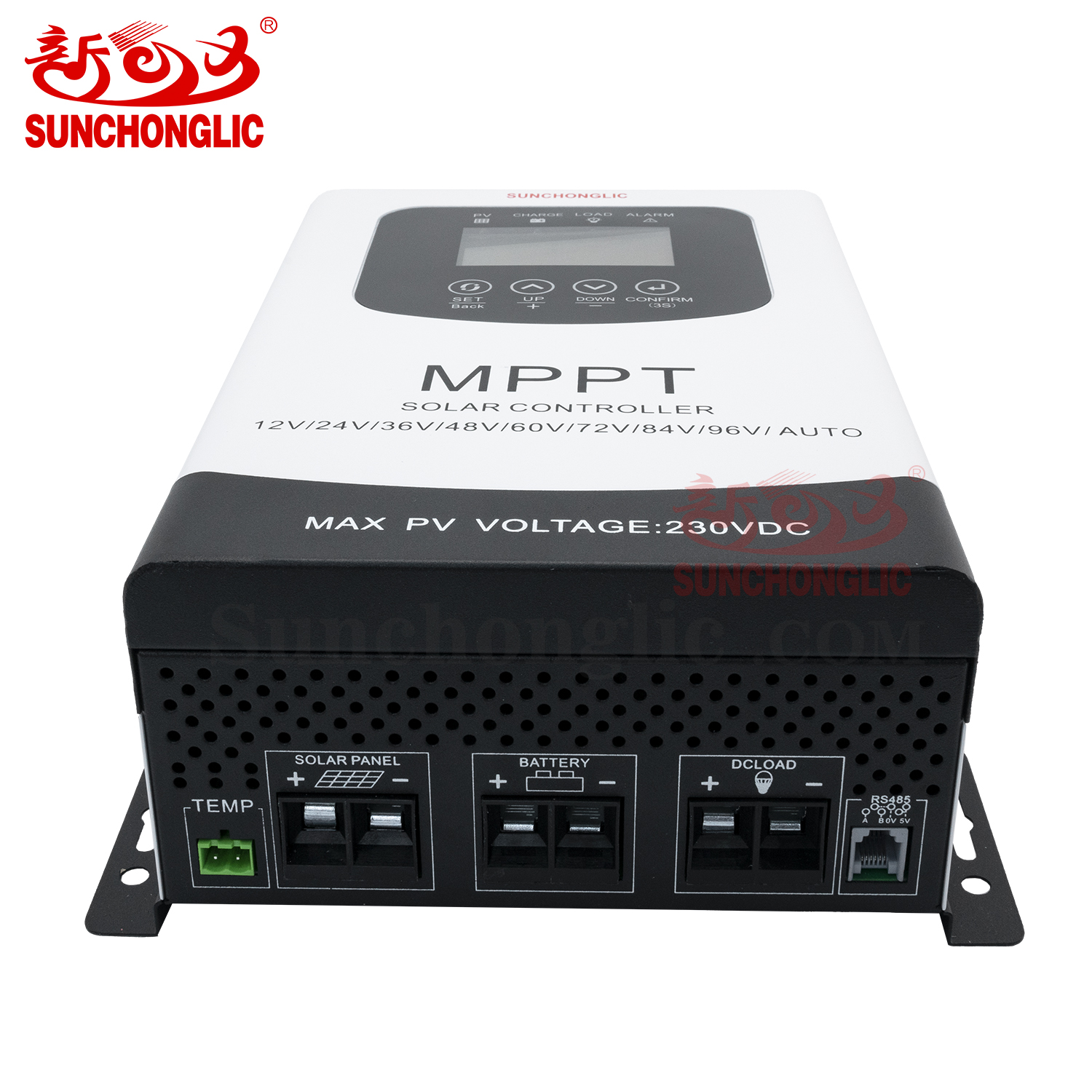

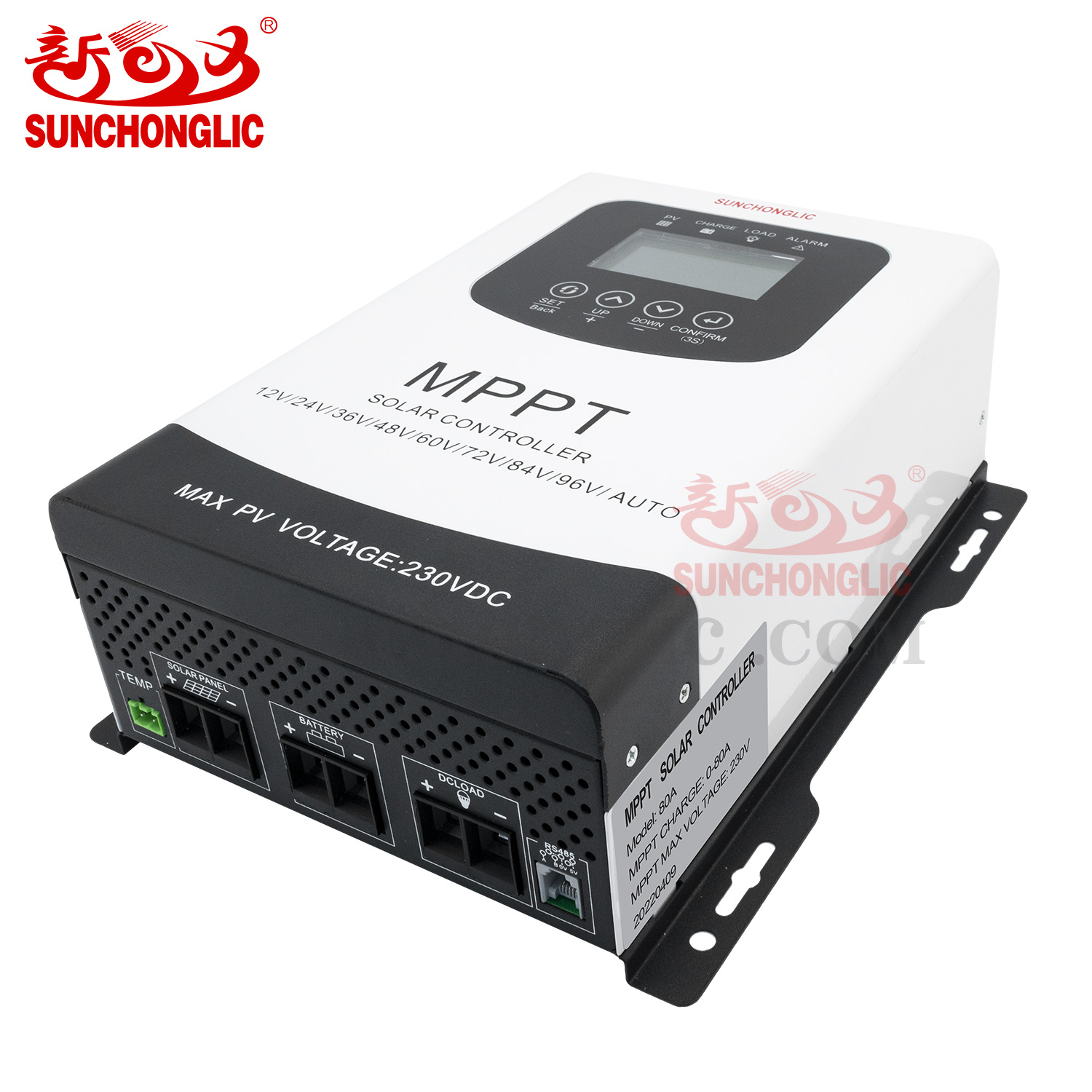

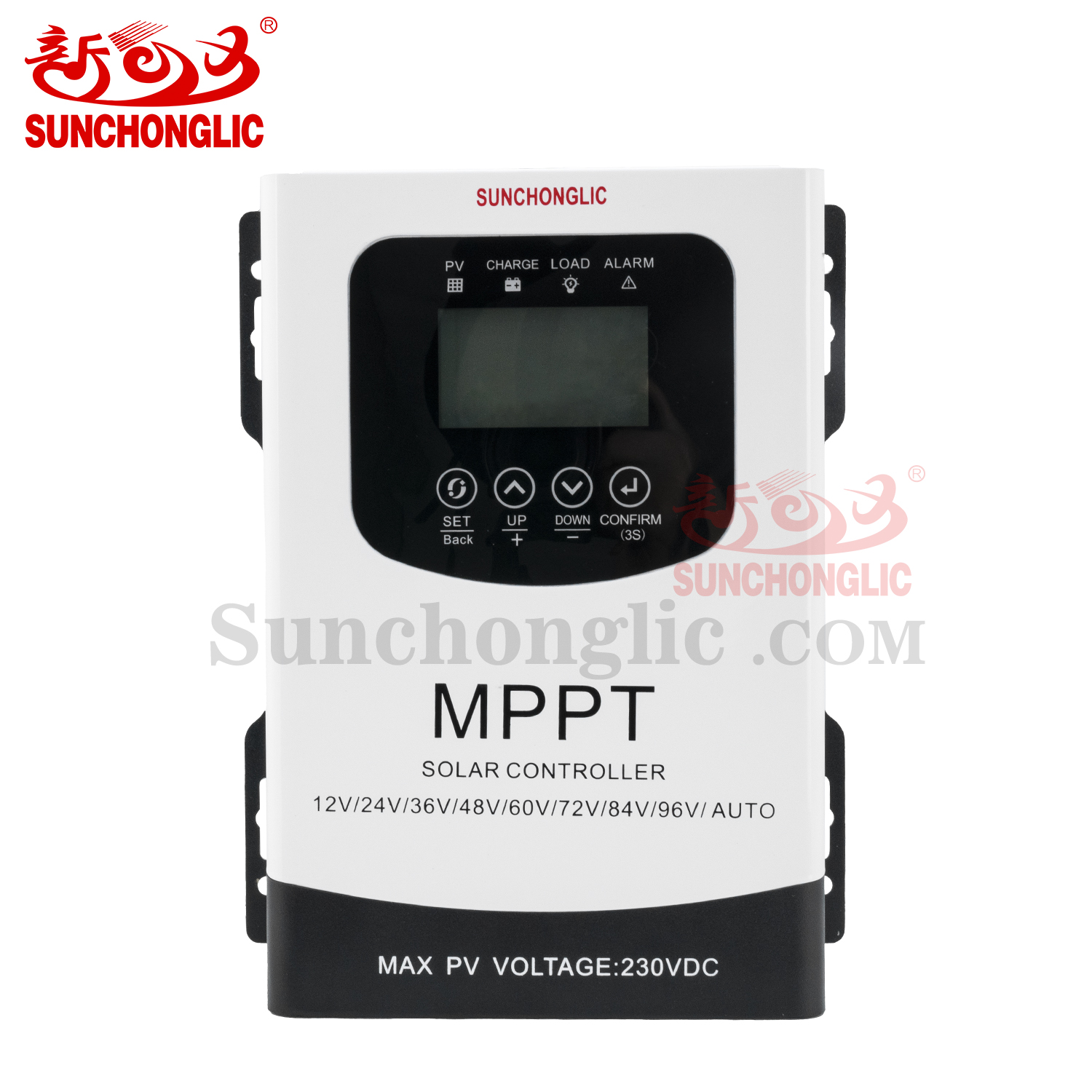

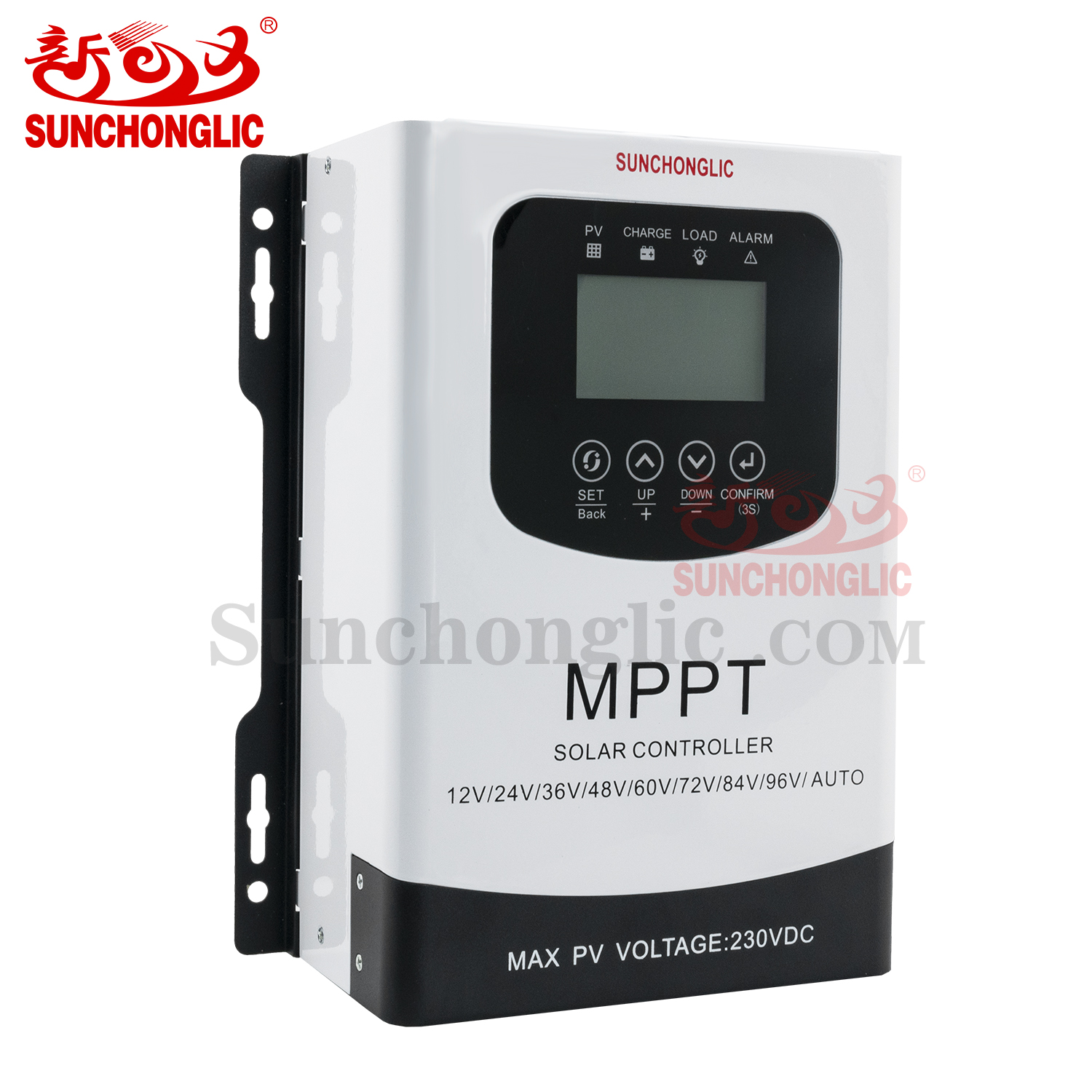

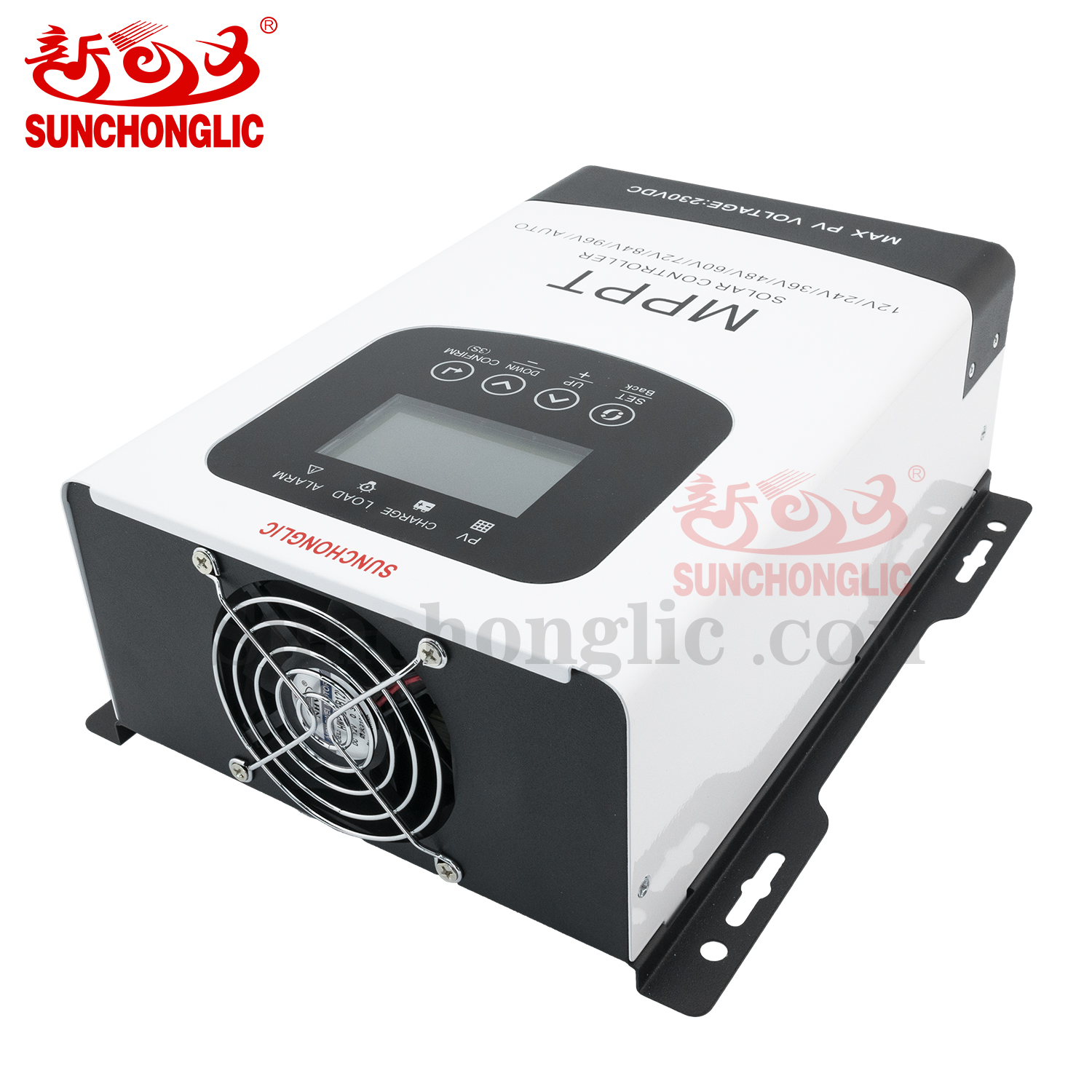

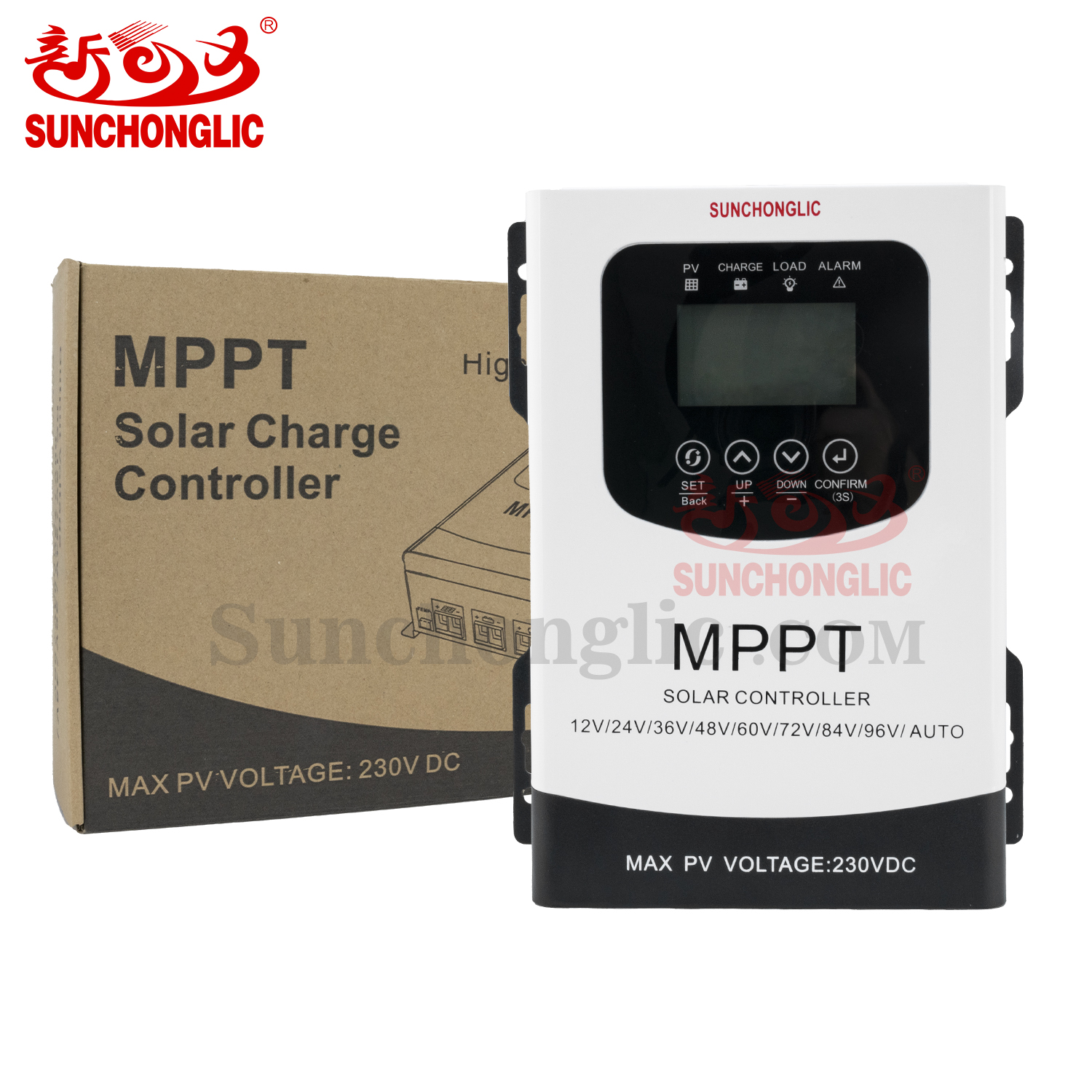

Product Photos
